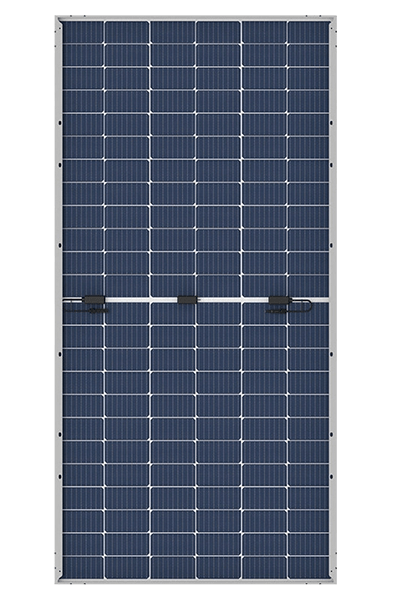

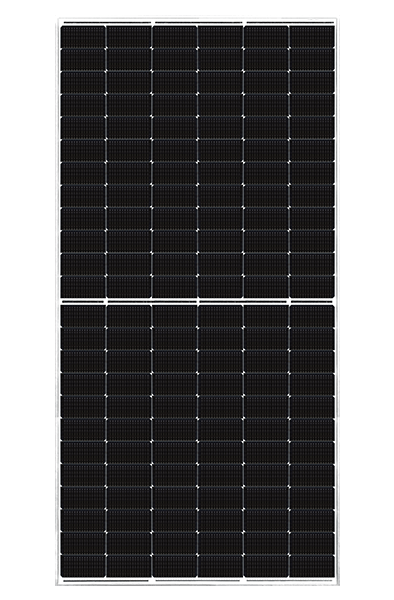

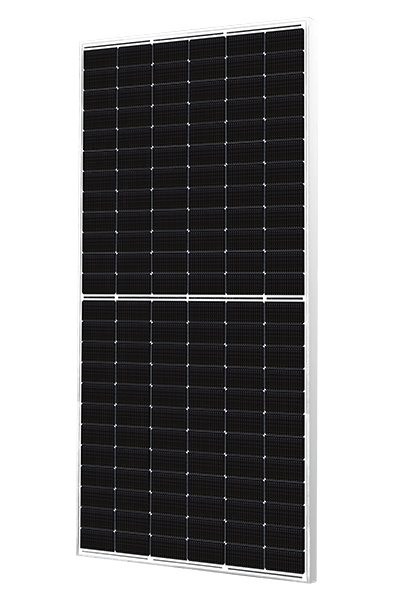

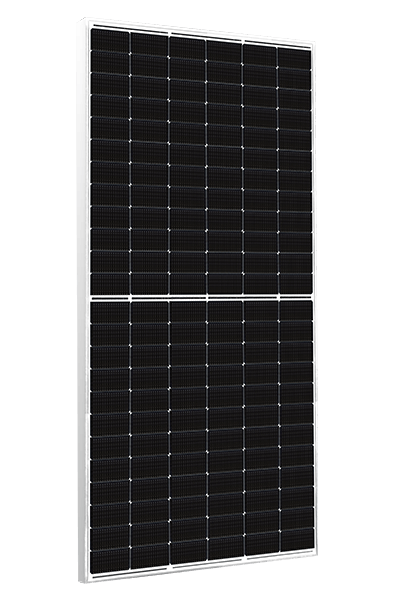

M10R 144 H-Cell - TOPCon Glass To Glass Module
📏 Dimensions: 2278 × 1134 × 30 mm (L × W × H)
⚖️ Weight: 31.6 ± 0.5 kg
🪟 Front Glass: 2.0 mm AR-Coated Heat-Strengthened Glass
🪟 Rear Glass: 2.0 mm Heat-Strengthened Glass
🟦 Frame: Anodized Aluminium Alloy – Silver Finish
⚡ Maximum System Voltage: 1500 VDC
| Cells | 72 (144 half-cells) |
|---|---|
| Length x Width x Height | 2278 x 1134 x 30 mm (89.68 x 44.65 x 1.18 inches) |
| Weight | 31.6±5% Kg (69.67 lbs) |
| Back Glass | 200 mm (+ve terminal) and 300 mm (-ve terminal) length cables, MC4 Compatible / MC4 Connectors |
| Frame | Anodized aluminium / Alloy steel frame** |
| System Voltage | 1500 VDC |
| Back Glass | 2.0 mm (0.098 inches) high transmission heat strengthened glass/mesh glass** (low iron content) |
| Module Type | High Efficiency N-type |
|---|---|
| Cell Arrangement | 72 (144 half-cells) |
| Pmax (STC) | 570–590 W |
| Module Efficiency (STC) | 22.05–22.84% |
| Vmp / Imp | 51.26 - 51.42 |
| Voc / Isc | 43.99 - 44.15 |
| Dimensions | 2278 x 1134 x 30 mm (89.68 x 44.65 x 1.18 inches) |
| Weight | 31.6±5% Kg (69.67 lbs) |
| Front Glass | 200 mm (+ve terminal) and 300 mm (-ve terminal) length cables, MC4 Compatible / MC4 Connectors |
| Back Glass | 2.0 mm (0.098 inches) high transmission heat strengthened glass/mesh glass** (low iron content |
| Frame | Anodized aluminium / Alloy steel frame** |
| Junction Box | IP6 |
| Connector | MC4-compatible |
| Cable | 4.0 mm², 1200 mm |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 1500 VDC (IEC) |
| Series Fuse Rating | 30 A |
| Mechanical Load | 5400 Pa (Snow load), 2400 Pa (Wind load) |
| Bifaciality | 10 ~ 30 % |
| Warranty | 12-year product / 30-year linear power |
| Irradiance / Temperature | 1000 W/m² • 25°C • AM1.5 |
|---|---|
| Pmax Range | 570-590 W |
| Module Efficiency | 22.05-22.84 % |
| Voltage at Pmax (Vmp) | 51.26 - 51.42 V |
| Current at Pmax (Imp) | 13.61 - 14.04 A |
| Open Circuit Voltage (Voc) | 43.99 - 44.15 V |
| Short Circuit Current (Isc) | 12.96 - 13.37 A |
12 Years Product Warranty
30 Years Linear Power Output Warranty
0.40% Annual degradation over 30 years. 1st year degradation ≤ 1.0%.
