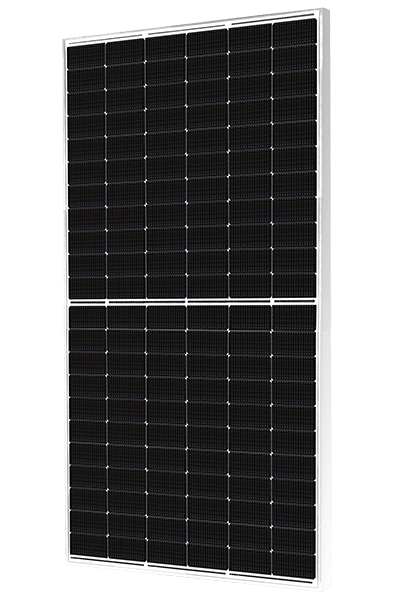

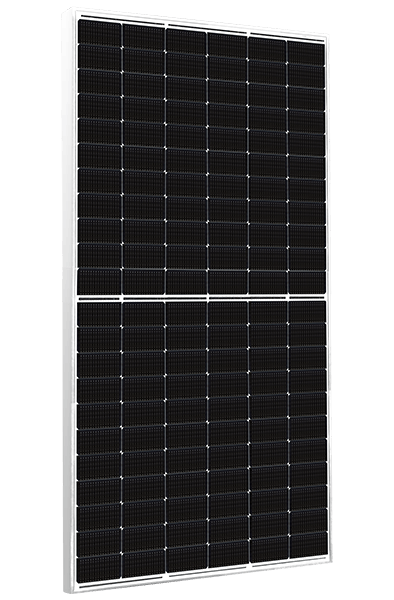

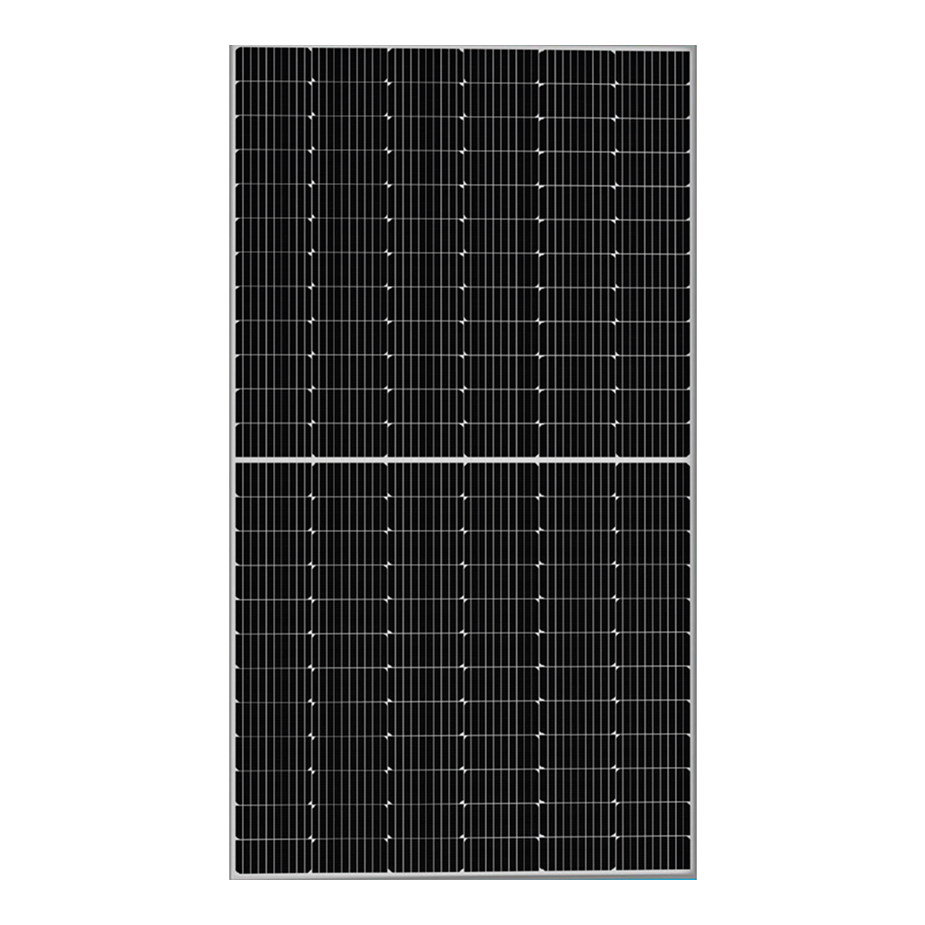

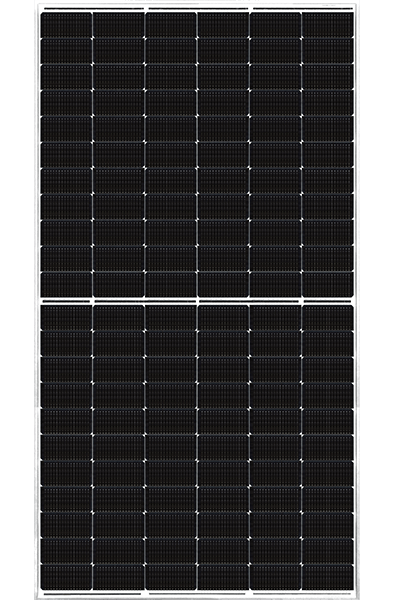

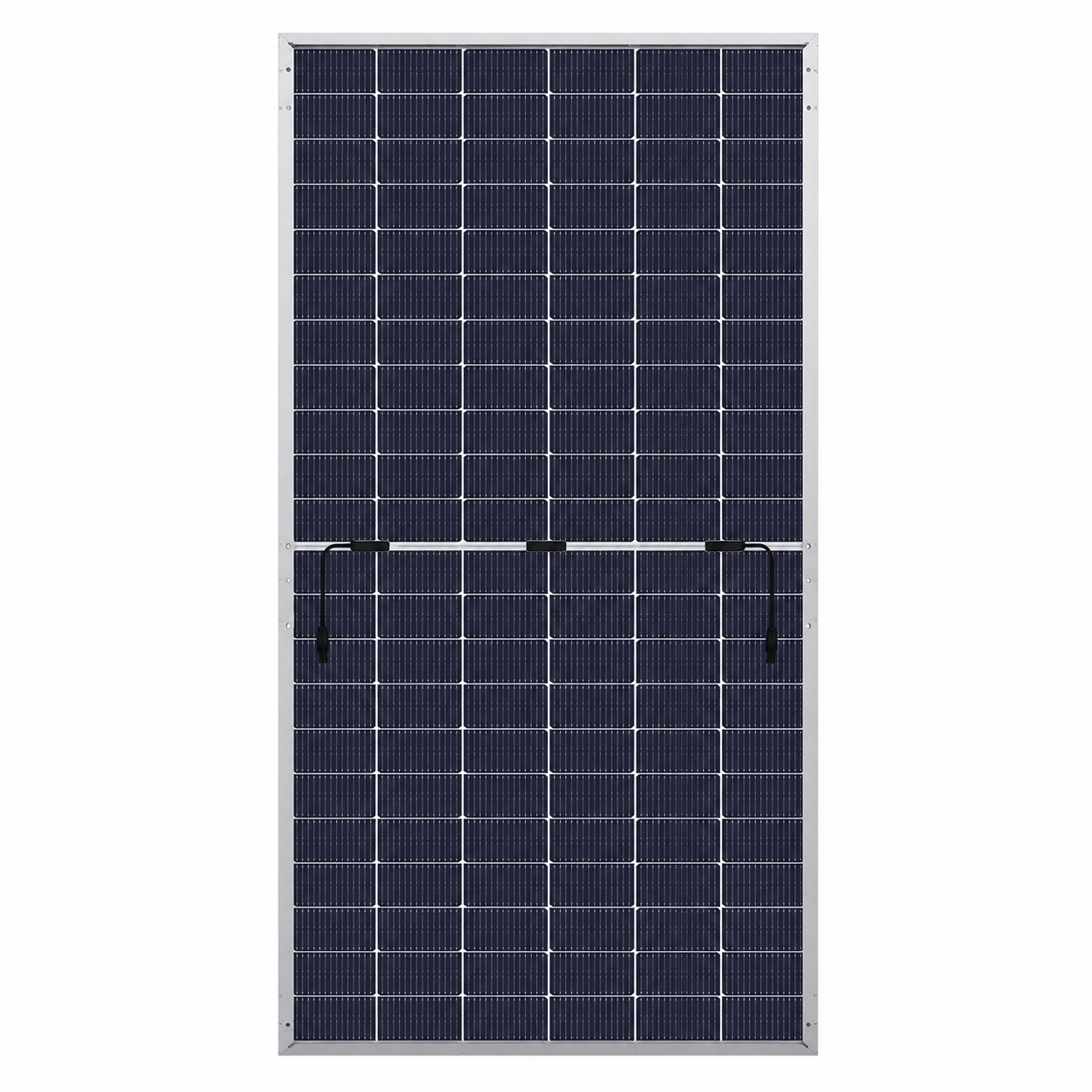

G12R 132 H-cell - TOPCon Glass To Glass Module
📏 Dimensions: 2278 × 1134 × 30 mm (L × W × H)
⚖️ Weight: 31.6 ± 0.5 kg
🪟 Front Glass: 2.0 mm AR-Coated Heat-Strengthened Glass
🪟 Rear Glass: 2.0 mm Heat-Strengthened Glass
🟦 Frame: Anodized Aluminium Alloy – Silver Finish
⚡ Maximum System Voltage: 1500 VDC
| Cells | 132 Half-cut N-type TOPCon Bifacial G12R Solar cells |
|---|---|
| Dimensions | 2382×1134×30mm (LxWxH) |
| Weight | 33.5±0.5 Kg |
| Front Glass | 2.0mm AR-coated heat-strengthened glass |
| Rear Glass | 2.0mm heat-strengthened glass |
| Frame | Anodized aluminum alloy, silver color |
| System Voltage | 1500 VDC |
| Module Type | AARKSOL G12R 132 H-cell |
|---|---|
| Cell Arrangement | 132 Half-cut cells |
| Pmax (STC) | 600-630 W |
| Module Efficiency (STC) | 22.14–23.35 % |
| Vmp / Imp | 40.44-40.92 / 14.84-15.40 |
| Voc / Isc | 46.81-47.47 / 15.5-15.79 |
| Dimensions | 2382×1134×30mm (LxWxH) |
| Weight | 33.5±0.5 Kg |
| Front Glass | 2.0mm AR-coated heat-strengthened glass |
| Back Glass | 2.0mm heat-strengthened glass |
| Frame | Anodized aluminum alloy, silver color |
| Junction Box | IP68 |
| Connector | MC4 Compatible Connector IEC/UL Certified |
| Cable | 4 sqmm, 300 mm length x 2 Nos. |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 1500 VDC (IEC) |
| Series Fuse Rating | 30 A |
| Mechanical Load | Front 5400 Pa / Back 2400 Pa |
| Bifaciality | ~70 % |
| Warranty | 12-year product / 30-year linear power |
| Irradiance / Temperature | 1000 W/m² • 25°C • AM1.5 |
|---|---|
| Pmax Range | 600-630 W |
| Module Efficiency | 22.14–23.35 % |
| Voltage at Pmax (Vmp) | 40.44 - 40.92 V |
| Current at Pmax (Imp) | 14.84 - 15.40 A |
| Open Circuit Voltage (Voc) | 46.81 - 47.47 V |
| Short Circuit Current (Isc) | 15.5 - 15.89 A |
12 Years Product Warranty
30 Years Linear Power Output Warranty
0.40% Annual degradation over 30 years. 1st year degradation ≤ 1.0%.
